Fresh and Gray Water Tanks






Class A Customs located in Elkhart, Indiana manufactures fresh and gray water use tanks along with black waste water holding tanks.

great for rvs, food vendors, tiny houses, overlanding and extra water storage

BPA FREE
Class A Customs does not carry this chemical nor uses it in the manufacturing process

Material Used To Manufacture
NSF Certified Materials - No Logo in Tanks (see why)
UV-8 Stabilization
glues do not stick to this material and easily cleaned.

Complies with:
U.S. FDA 21 CFR 177.1520 (c)3.1a
Canadian HPFB No Objection
Underwriters Laboratories Inc.
EU, 10/2011
NSF International NSF/ANSI Std 61 (sec 4 & 5)



all tanks Class A Customs manufactures must be vented (allow air in/out during use), Plumbing Example
Tanks creamy white in color can be used for Fresh or Gray water use, great for rvs, food vendors, tiny houses, over-landing and extra water storage

Seamless
One-piece seamless construction, no seams to burst Average tank thickness: .219 or 7/32" thick (just under 1/4")

Rotatable
tank can be placed on any side but must be braced

Resistant
Stain, Corrosion and Rust Resistant

Color
Creamy White in color so you can see waterline through tank

Manufacturer Warranty
Manufacturer warranty covers manufacturer defect on manufacturer installed fittings and tank. Using this tank for any purpose other than fresh or gray water storage will void any/all warranty.
Do Not use Fresh / Gray tanks for sewage or fuel. Do not call to ask can it be used for fuel or sewer, we will only refer you to the warranty information.
Have a certified technician install all parts to prevent product damage and personal injury. Be sure to Sanitize Tank before installing.


Shipping Information and Order Processing

Food Vendor Information - Read Before Purchasing

Water Tank List

How to Sanitize Fresh Water Holding Tank

Plumbing and Venting Water Tanks

How to Fill Water Tanks

Bracing and Supporting Water Tanks

Custom Water Tanks - Custom Fittings






Class A Customs Black Waste Tanks

Used for Human Waste OR Gray Water - DO NOT use for fresh or drinking water - 3” ABS Female Pipe - outlet can not be moved



Class A Customs Gray Waste Tanks

Used for Gray Water ONLY - DO NOT use for fresh or drinking water OR Human Waste - 1.5" ABS Female Pipe - outlet can not be moved

Due to the smaller outlet this tank is for dirty water from shower, handwashing, dish-washing



Non-pressurized Tank
all tanks we carry must be vented (allow air in/out during use), Plumbing Example
great for rvs, food vendors, tiny houses, overlanding and extra waste water storage

Seamless
One-piece seamless construction, no seams to burst Average tank thickness: .219 or 7/32" thick (just under 1/4")

Resistant
Stain, Corrosion and Rust Resistant

Color
Black in color so tank is easily identified as a waste tank

Material Used To Manufacture
Recycled Medium Density Polyethylene (MDPE) Resin - glues do not stick to this material and easily cleaned. - Because product is recycled and intended for waste use it is not tested for safety of drinking or gardening water supply.

Manufacturer Warranty
Manufacturer warranty covers manufacturer defect on manufacturer installed fittings and tank. Using this tank for any purpose other than waste or gray water storage will void any/all warranty.
Do Not use Waste Tanks for fresh / drinking water or fuel. Do not call to ask can it be used for fuel or fresh / drinking water, we will only refer you to the warranty information.
Have a certified technician install all parts to prevent product damage and personal injury.


Installed Outlet
Black Waste Tanks - 3” ABS Female Pipe - outlet can not be moved

Gray Waste Tanks - 1.5" ABS Female Pipe - outlet can not be moved


Do Not over-tighten fittings damage will occur.
Dump valves do not hook directly to the ABS fittings, the ABS Outlets are female fittings and the dump valves are also female fittings, you will need a pipe to fit inside of the outlet and hub in order to make the connection.

From the outlet run PVC or ABS piping to the outside of the trailer, a dump valve is added to the piping. We do not sell glues, examples Oatey 4-fl oz Green PVC/Abs Transition Cement


Inlet & Vent Installation
Black Water Tanks only come with the outlet the end user will determine where the inlet and vent will need to be placed and install.

Grommet or Uniseal will secure inlet/vent pipe with no adhesives needed. Use correct size hole saw bit in order to drill a hole in the tank and place Grommet or Uniseal in hole, piping is then placed in fitting with no glues or adhesives necessary.



Example Video




Class A Customs
1130 County Road 6 West
Elkhart, IN 46514
www.classAcustoms.com

How to install Reduction Gear Box for 5th Wheel Landing Gear Legs

Before replacing any items please go through the following checklist

If your motor is making a clicking sound this is the safety clutch in the motor preventing damage to the motor.
This is not the gear box.
When clutch noise occurs, release the power switch.
Failure to do so will result in damage to motor and possibly other system components.

Check for binding
Your trailer legs should be cleaned and checked for debris on a regular basis.
Sand and dirt will cause legs to bind.

To clean landing gear legs
Extend landing legs as far as possible, clean drop tube and inner ram tube.
Coat exposed surface of tubes with silicone spray lubricant.
Coat inside of handle alignment tube with silicone spray lubricant.
Oil shaft bushing in gear box and leg gear heads with SAE 30 oil.
Lubricate gears in gear box and landing leg gear heads with extreme pressure grease.
*Do NOT open motor to lubricate as this voids warranty.

Check for damage to legs
Any damage to the legs such a bending or denting will cause binding.

Check power to system
Check that your batteries and power supplies are at full levels to prevent damage to the motor.
Check wiring connections at battery. Clean terminals with a solution of baking soda and water.
Cover with a thin coat of grease.
Check wiring harness fuse, if blown replace with appropriate fuse.

Do not exceed weight limit of landing gear system
Do not use the landings legs to lift the trailer during tire changes, axle work or trailer servicing (the trailer weight will exceed the capacity of the landing legs).
The landing legs are designed to stabilize a portion of the trailer’s weight.
Support the front end of the trailer with structural stands rated for the GVWR of the trailer.

Grease Landing Gear Legs

You will want to remove the top of the leg and run the lube down on the sides to flush out any debris.



SAFETY WARNING:
• Read, understand and follow all instructions before installing and using product.
• NEVER allow anyone unfamiliar with the operating instructions to use this product.
• Failure to follow these warnings and instructions can result in property damage and/or serious bodily injury.
• Class A Customs is not responsible for improper installation, use, or maintenance of this product.


The following items must be done before operating the levelers.
• Warn all persons to stand clear of vehicle.
• Keep hands and clothing away from moving parts.
• Park the vehicle on a reasonably level site. Check for rocks, holes, or other obstructions.
• Soft/spongy ground may allow levelers to sink. Levelers must be on firm solid ground or surface prior to operation.
• Insure area below and around leveler is clear of obstructions.
• Do not extend the slide-outs until coach is level.

• Never exceed rated capacity of landing legs.
• Do not use the landings legs to lift the trailer during tire changes, axle work or trailer servicing (the trailer weight will exceed the capacity of the landing legs). The landing legs are designed to stabilize a portion of the trailer’s weight. Support the front end of the trailer with structural stands rated for the GVWR of the trailer.
• Chock both sides of trailer wheels before operating landing legs.
• Both legs must touch the ground or the surface at the same time.
• Never drop the trailer off the hitch.
• Never attempt to lift or level without having both foot plates properly installed.
• When cranking jack or coupling trailer, secure trailer from rolling.
• These landing gear jacks are designed for vertical loading. Excessive side forces must be avoided.
• Never attempt to adjust the drop legs when the landing gear jacks are under load.
• Make certain the drop leg safety retaining pins are fully inserted through both sides of the inner tube and the drop leg tube before using the landing gear jacks.
• Owner or operator must never position any part of their body under any portion of the
jack or the load being supported or allow anyone else to be positioned under the load being supported. Disregard could cause property damage and/or serious bodily injury.
• Do not retract past the STOP label.
• Retract landing legs completely before towing trailer.


• Most switches are not ignition protected. DO NOT install these in areas which require ignition protected devices (such as battery or propane tank storage compartments). Only the Ignition Protected Switch is approved for installation in these compartments.

• Failure to follow these warnings and instructions can result in property damage and/or serious bodily injury.




POWER OPERATING INSTRUCTIONS
On a trailer equipped with a Venture Mfg. Co. 12VDC Power Kit follow the same procedures as “MANUAL OPERATING INSTRUCTIONS” except, operate the switch control to EXT (extend) or RET (retract) as indicated.

Power Kit is equipped with an overload clutch and a 30 AMP fuse. If fuse blows during normal operation replace fuse (located on the pink wire) with standard 30 AMP AGC type fuse.

Verify battery is fully charged before attempting further operation.

If clutch slips it may indicate you have reached the extend or retract limits of the jacks OR the trailer weight has exceeded the max rated load of the Landing Gear system.
Items stored inside/on the trailer can greatly affect the weight applied to Landing Gear system. If clutch consistently slips during normal operation, redistribute items stored in the trailer.

CAUTION
• When clutch noise occurs, release the switch. Failure to do so may also destroy
the clutch, in which case the entire power kit will have to be replaced.

• Potential damage to the trailer frame may occur if legs or power kits are operated
unevenly. Front of trailer must remain horizontal.

MANUAL OPERATING INSTRUCTIONS
For manual operation of fifth wheel landing gear on a trailer not equipped with a 12 VDC power kit, or if power is not available, proceed as follows:

• Drop Leg Operation: Disengage drop leg safety retaining pin to lower or raise foot plate to desired position, return the safety retaining pin making sure it is fully inserted through both the inner tube and the drop leg tube before using the jack.

• To Extend:
(1) Attach the manual crank handle and crank until the inner tube is halfway to the ground.
(2) Remove the safety retaining pin from the drop leg tube. Let the drop tube fall to the ground and re-pin in the nearest adjustment hole.
(3) Continue extending landing legs until pin box disengages from the hitch and the trailer’s weight is completely removed from the hitch.
(4) When there is sufficient clearance between the pin box and hitch, move tow vehicle clear of trailer. Never drop trailer off the hitch.
(5) Lower trailer until it is level.
(6) Remove and store crank handle.

• To Retract: Perform “To Extend” instructions in reverse. Be certain the landing gear legs are fully retracted; drop legs are re-pinned in the fully retracted position; and foot plate is higher than the lowest point of the trailer to prevent dragging. Remove and store the crank handle.


Class A Customs
1130 County Road 6 West
Elkhart, IN 46514

Call Us: (574) 206-0101




Overall Leg Dimension
Roughly 32” Overall Retracted (top of Leg to Bottom of Leg - does not include adding foot pad)
Roughly 48" Long Fully Extended (top of Leg to Bottom of Leg - does not include adding foot pad)

Painted Black Section 29 ½” long x 2 ½” wide
Inner Leg Tube Roughly 2" wide (shaft for foot pad)

Tabs Distance
15 ½” Inner Edge to Inner Edge
17 ½” Outer Edge to Outer Edge

NO Mounting Hardware

Do Not Exceed Capacity
Single Motor System 2,500 lbs. per leg / 5,000 lbs. system
Dual Motor System 3,000 lbs. per leg / 6,000 lbs. system


Follow/Idle Leg Only Class A Customs Part # TSB-FL



Drive/Lead Leg Only Class A Customs Part TSB-DL

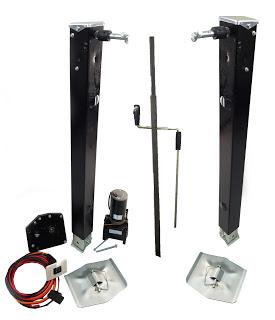

Class A Customs Part # TSB-2L1M1S

2 (Two) Landing Gear Leg (1 Lead/Drive and 1 Follow/Idle)
1 (One) Cross Bar
1 (One) 5th Wheel Landing Gear Motor
1 (One) Reduction Gear Box
1 (One) Wiring Harness w/ Switch
2 (Two) Foot pad
1 (One) Manual Crank Handle
NO Mounting Hardware
Class A Customs Part # TSB-2L1M1S

Cross Bar is used to hook Drive Leg to Idle Leg, Motor is hooked to Drive Leg and powers both legs. Larger units will need a Dual Powered System.

Do not exceed weight limit of landing gear system
Do not use the landings legs to lift the trailer during tire changes, axle work or trailer servicing (the trailer weight will exceed the capacity of the landing legs).
The landing legs are designed to stabilize a portion of the trailer’s weight.
Support the front end of the trailer with structural stands rated for the GVWR of the trailer.


Class A Customs Part # TSB-2L2M2S
2 (Two) Landing Gear Leg (1 Lead/Drive and 1 Follow/Idle)
2 (Two) 5th Wheel Landing Gear Motor
2 (Two) Reduction Gear Box
2 (Two) Wiring Harness w/ Switch
2 (Two) Foot pad
NO Mounting Hardware
Class A Customs Part # TSB-2L2M2S

Larger units and units with larger amount of weight need a Dual Motor System.
Each motor must have a switch, you can use a dual switch that has two switches in one face plate but you can not one switch on two motors.

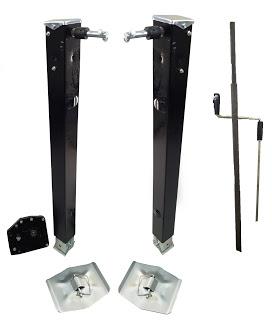

Class A Customs Part # TSB-C-2L


2 (Two) Landing Gear Leg
1 (One) Reduction Gear Box
1 (One) Cross Bar
2 (Two) Foot pad
NO Mounting Hardware
Class A Customs Part # TSB-C-2L



Manual Crank







How does the reduction gear box go on? And will your box fit the unit I already have?

If your motor does not look like our motor it will not work with your current system. You may need a new reduction gear box and rebuild kit. To find if your legs have the same gears inside you would need to open the leg to compare.








This rebuild kit is for repairing the drive leg on 5th wheel landing gear
This kit is also used to convert an idle leg into a drive leg for a dual motor system
16T Bevel Gear
12T Bevel Gear
Lead Drive Shaft
Drive Shaft Bushings
E-Clip
Spirol Pin
Follow Drive Shaft
Drive Pin
Shim Washer
Diagram in pictures shows all included parts.

The hardest part of installing this kit is working in tight spaces. Your best route is to drop the leg out by unbolting the two bolts that hold the leg in. Once out it is a lot easier to work on and when your done you lift the leg back up and bolt it back in.


Your leg needs to have a 1/2 moon shaft to fit our reduction gear box or you will need a rebuild kit.





Be sure to place the black rubber stopper piece over the 1/2 moon shaft once you have the reduction gear box on the leg and use the screw provided to secure the stopper.

You do not screw the box to the leg the cross bar will keep the box mounted on.





 Again use the screw provided to secure the cross bar on to the 1/2 moon shaft.

 Secure the idle leg, there will be no rubber stopper on the idle leg.





 What if I am using a motor to make the legs powered how do I hook the motor up?


The motor will attach to the reduction gear box and be secured with the two bolts provided. Be sure you correctly line the motor shaft with the crank shaft.


If you already have the legs but need to change your motor(s) and gear box(es) your leg(s) needs to have a 1/2 moon shaft to fit our reduction gear box or you will need a rebuild kit.


If you have a dual motor system you will need a rebuild kit, reduction gear box and motor for each leg. Due to different style motors if you have a different brand motor it is not advised to change just one motor at a time, the reason is the motors may lower/raise at different speeds causing damage to your trailer.






If you lose power you can manually crank a system with a motor attached.


I already have a motor can I buy one of your motors and use it with mine?

If you have a Venture M-9000 (M PK-9000) Motor then yes.

If you have an off brand or an ADTH motor then no. ADTH and other brands copied the Venture motor and most used plastic gears which wear down very easily. The motor speeds and different type of materials make them an unsafe match to use, you do not want one leg to go up or down faster than the other leg. This is the same problem with having a plastic gear box.



Venture Landing Gear Motor M9000 / M-9000-PK













REDUCTION GEAR BOX









1/2 Moon Shaft


3:1 gear ratio
Will work with manual and electric systems.
Cast Aluminum Casing
Heavy Duty Cast Gears
1/2 Moon Shaft


Class A Customs
1130 County Road 6 West
Elkhart, IN 46514

Call Us: (574) 206-0101
