Heng's Vortex II Switch / Circuit Board Replacement Photos classacustoms








**For warranty to be valid you must provide the paperwork and receipt of the certified dealer/repair shop which installed the unit. Warranty does not cover install by customer or un-certified technician. Please be prepared to provide this information when contacting us regarding a warranty issue.**

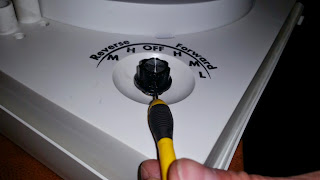

First remove the small set screw in the knob on,
if you do not remove this you will damage the circuit board.
Screws is located across from the white line on the turn knob.






To remove the switch/circuit board you will need to remove the small nut holding the switch/circuit board in place. Do not turn the blue knob, be sure to remove the nut.


Do not turn the blue knob, be sure to remove the nut.
Do not turn the blue knob, be sure to remove the nut.



The switch/circuit board will then be free from the back side.
Disconnect the wires and be sure to reconnect matching wires on the new switch.
