Heng's 9 x 9 inch 18511-C1G or 17511-C1G RV Roof Vent Installation Instructions classacustoms

Heng's 9 x 9 inch 18511-C1G or 17511-C1G



18511-C1G  9 x 9 Mini RV Roof Vent Heng's White


17511-C1G  9 x 9 Mini RV Roof Vent Heng's Colonial White

Lightweight vent that is ideal for providing fresh air in small places such as bathrooms, passageways, galleys, etc.

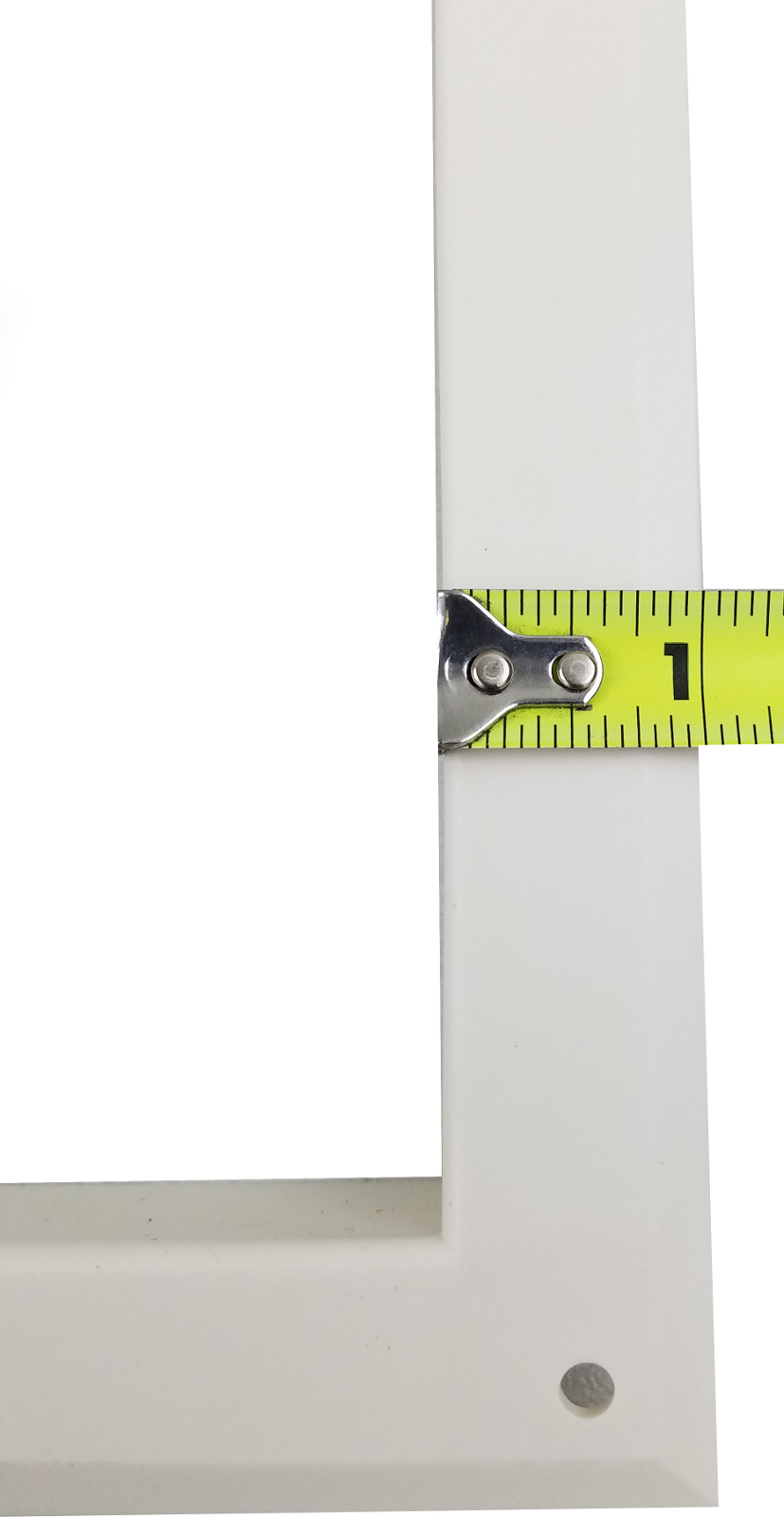

Please see photos for complete measurements and compare with your application.
No retail box as these are purchased in bulk, no install instructions as they are OEM parts.

Rough Cut-out Opening Dimensions (this is the hole you will need in your unit): 9 1/4" x 9 1/4" x 1/2" deep (how far screen section sticks down in roof)

Exterior Mounting Flange Dimensions (sits on the top of your unit): 11 1/2" wide x 11 1/2" wide

Rough Overall Dimensions: 1 1/4" Tall (how far vent would stick up over roof when closed) x Manual T Handle Style Crank will stick down Overall 3" from inside of roof

Standard OEM Inside Garnish Shroud Included: 1/2" wide x 9 1/2" wide - 1" tall vertical leg (how far it sticks in roof) / 1 " lip (trim you will see on inside of roof)
Mounting Hardware NOT provided, you will need to provide screws and caulk/putty.
