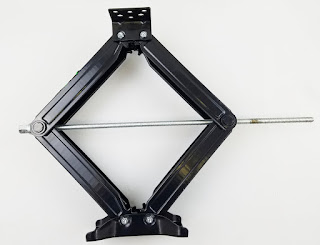

Features & Specifications
Capacity of Each Jack 2,500
Black Powder Coated to Resist Rust
2,500 lb jacks are best used on pop ups and small aluminum framed trailers.
5,000 lb / 7,500lb jacks are best on larger units.
Length Needed If the distance between the ground and your trailer frame is less than
20 inches you should use 24 inch jacks
20 inches you should use 24 inch jacks
Jacks are held open by static load and need to be open ¾ of the way or will collapse.
Footplate Dimensions:
Mounting Plate Dimensions: 9 inches x 4 1/2 inches - Screw Pattern May Vary
Extend Height: 24"
Collapsed Height: roughly 4"
Collapsed Length: roughly 27" (this includes screw)
Drive Screw 3/4" Hex Head Double lead acme threaded
INSTALLATION & USE
Jack is made to stabilize your unit, not lift unit off the ground.
Vehicle frame and door jamb damage may result.
May be mounted in front or rear by either weld-on or bolt-on applications to frame.
Do Not attach with screws they will work their way loose or be pulled out.
Do Not use the scissors jack to lift excessive weight or tires off the ground.
Do Not use these scissors jack as a tire changing jack.
Do Not use an impact to raise or lower any of the jacks we sell damage will occur.
NO instruction booklet NO Mounting Hardware OEM replacement parts
May be mounted in front or rear by either weld-on or bolt-on applications to frame.
WARNINGS
DO NOT screw these down, screws will work their way loose or be pulled out.
Do Not use an impact to raise or lower any of the jacks we sell damage will occur.
DO NOT use the scissors jack to lift excessive weight or tires off the ground.
Jack is made to stabilize your unit, not lift unit off the ground.
Vehicle frame and door jamb damage may result.
DO NOT use these scissors jack as a tire changing jack.
